CNC Machining Tolerances for Precision Components
Precision CNC machining for engineered components requiring controlled dimensions, repeatability and drawing-defined tolerances across prototype and production requirements in the UAE and international markets.
Tolerance Capabilities
Precision Manufacturing Built Around Your Drawing
Machining tolerances depend on component geometry, material, feature size, manufacturing process and inspection requirements. Our manufacturing approach begins with reviewing these requirements before production.
Dimensional Tolerances
Controlled machining of critical lengths, widths, diameters and component features according to drawing requirements.
Geometric Tolerances
Manufacturing support for drawing-defined form, orientation and positional requirements on precision engineering components.
Hole & Bore Control
Precision machining of holes, bores and mating features requiring controlled dimensions and functional relationships.
Repeatability
Process control supporting dimensional consistency across repeat component manufacturing and production requirements.
Critical dimensions should be identified on the engineering drawing so that geometry, material, machining strategy and inspection requirements can be reviewed before production.
Tolerance Reference
Typical CNC Machining Tolerance Considerations
Tolerance requirements vary according to material, component geometry, feature size and application. The manufacturing and inspection approach should therefore be based on the requirements defined in your engineering drawing.
- Drawing-defined dimensional requirements
- Component-specific manufacturing review
- Inspection matched to critical features
| Feature | Typical Requirement | Manufacturing Consideration |
|---|---|---|
| Linear Dimensions | Drawing specified | Feature size, accessibility and machining strategy |
| Diameters | Drawing specified | Turning, milling or boring process |
| Hole Sizes | Drawing specified | Drilling, reaming or precision boring |
| Flatness | Application specific | Component geometry, setup and datum strategy |
| Parallelism | Application specific | Datum selection and machining strategy |
| Position (GD&T) | Drawing / GD&T specified | Datum structure and suitable inspection method |
| Surface Finish | Drawing specified | Material, tooling and machining process |
Critical dimensions should be identified on your engineering drawing. Our team can review the component geometry, material, machining requirements and inspection considerations before production.
Engineering Insights

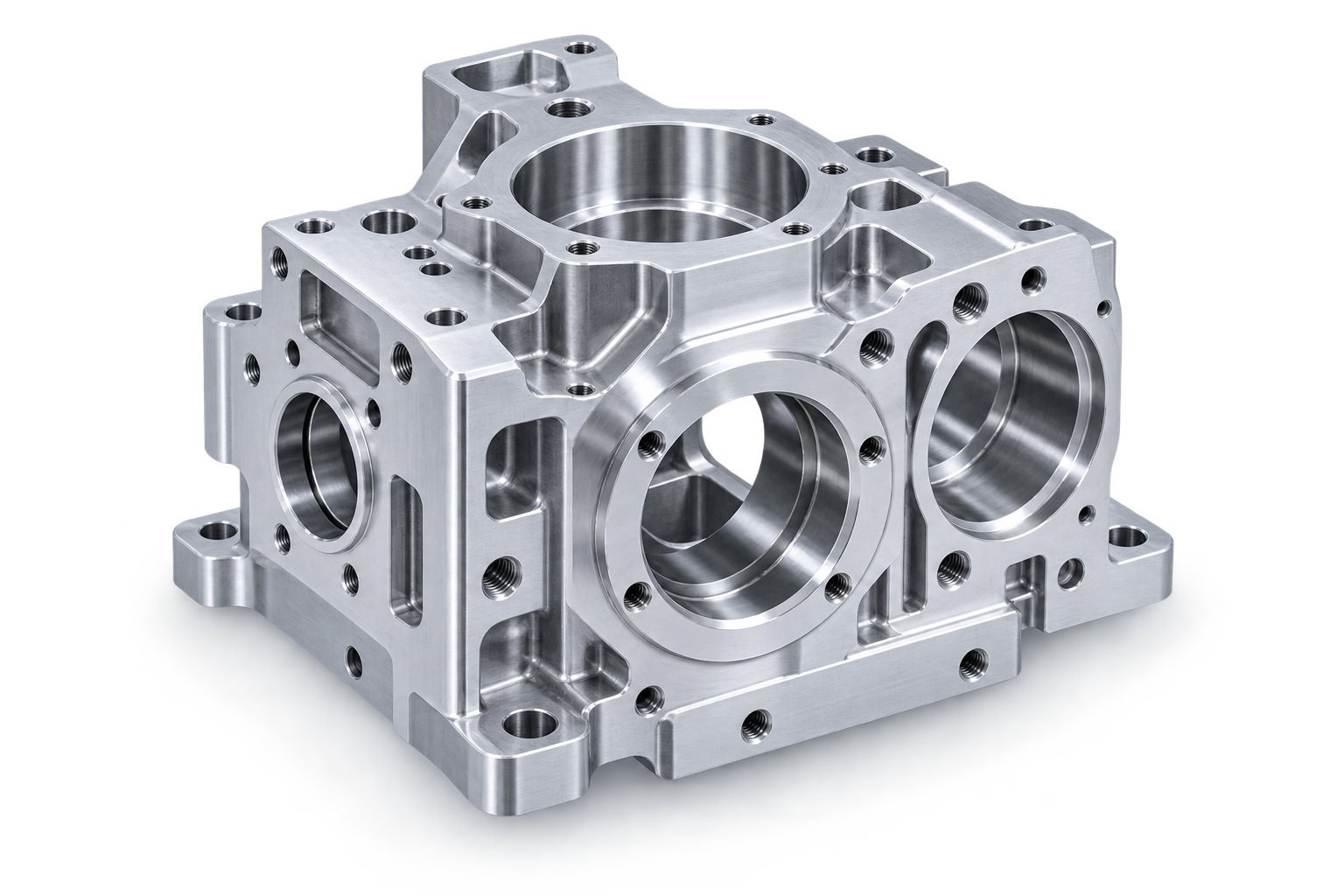

What Affects Achievable CNC Machining Tolerances?
Several factors influence the achievable tolerance on a machined component. Understanding these factors helps optimise component design, manufacturing strategy and inspection requirements.
Discuss Your RequirementsMaterial
Different materials respond differently to machining forces, heat and dimensional stability.
Component Geometry
Thin walls, deep pockets and complex geometries can influence achievable dimensional accuracy.
Feature Size
Very small, deep or slender features may require specialised tooling and machining strategies.
Machine Setup
Workholding, datum selection and the number of setups can influence dimensional control.
Surface Finish
Surface-finish requirements can affect tooling, machining parameters and final dimensions.
Inspection Method
Critical dimensions must be compatible with an appropriate and repeatable measurement method.
Engineering Review Matters
The tightest achievable tolerance is not a single fixed value for every CNC-machined part. Component geometry, material, manufacturing process and inspection method should be reviewed together against the functional requirements of the engineering drawing.

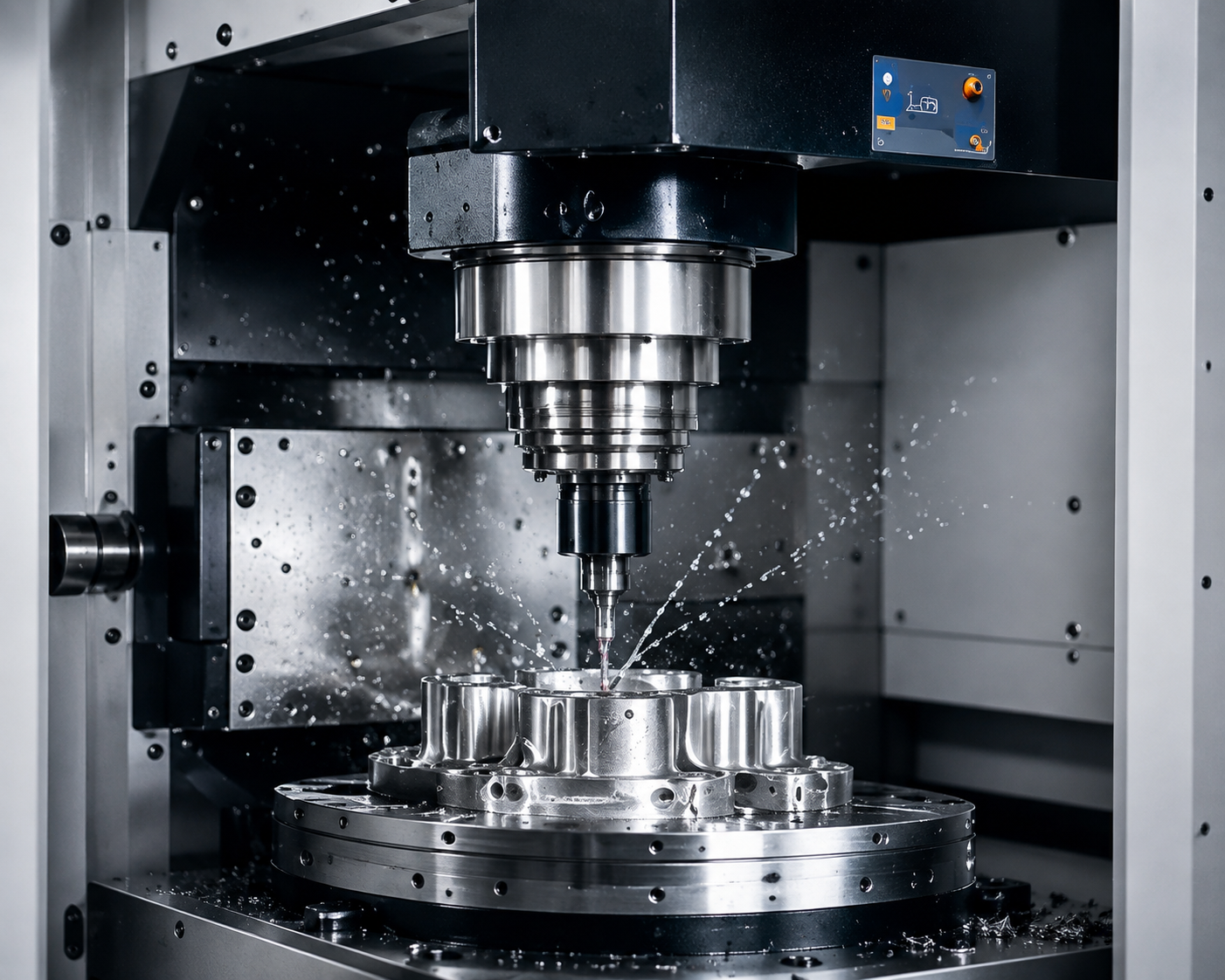

Precision Machining
Engineered for Critical Component Features
From simple to complex components, our CNC machining capabilities support precision features manufactured to drawing-defined dimensional and functional requirements.
Precision Bores
Controlled bore dimensions and mating surfaces for components requiring accurate internal features and functional fits.
Hole Patterns
Accurate feature positioning and controlled hole patterns based on drawing-defined dimensions and datum requirements.
Mating Features
Dimensional control for functional features designed to interface, locate or assemble with related components.
Critical Diameters
Precision machining and turning of functional diameters requiring controlled size and dimensional consistency.
Flat & Parallel Surfaces
Controlled machining of datum, mounting and mating surfaces according to component drawing requirements.
Complex Geometries
Multi-surface CNC machining for components with demanding geometry, multiple features and complex machining requirements.
Have a Component With Critical Features?
Send your engineering drawing, material, tolerance and quantity requirements for manufacturing review.

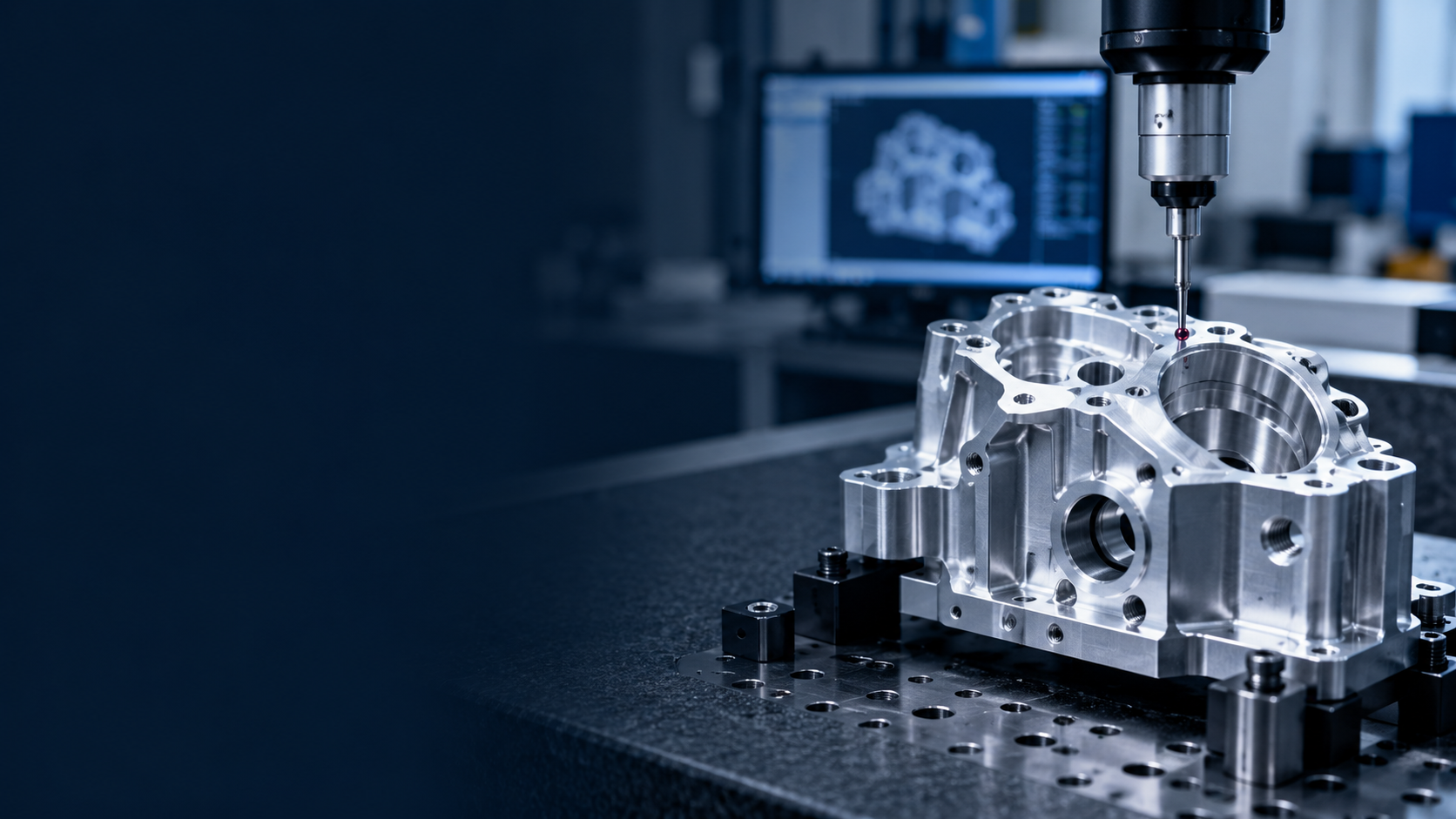

Inspection & Verification
Precision Is Verified, Not Assumed
Dimensional inspection is an essential part of precision CNC manufacturing. Measurement methods are selected according to component geometry, critical features and the requirements defined in the engineering drawing.
Dimensional Inspection
Verification of specified dimensions and critical component features against drawing requirements.

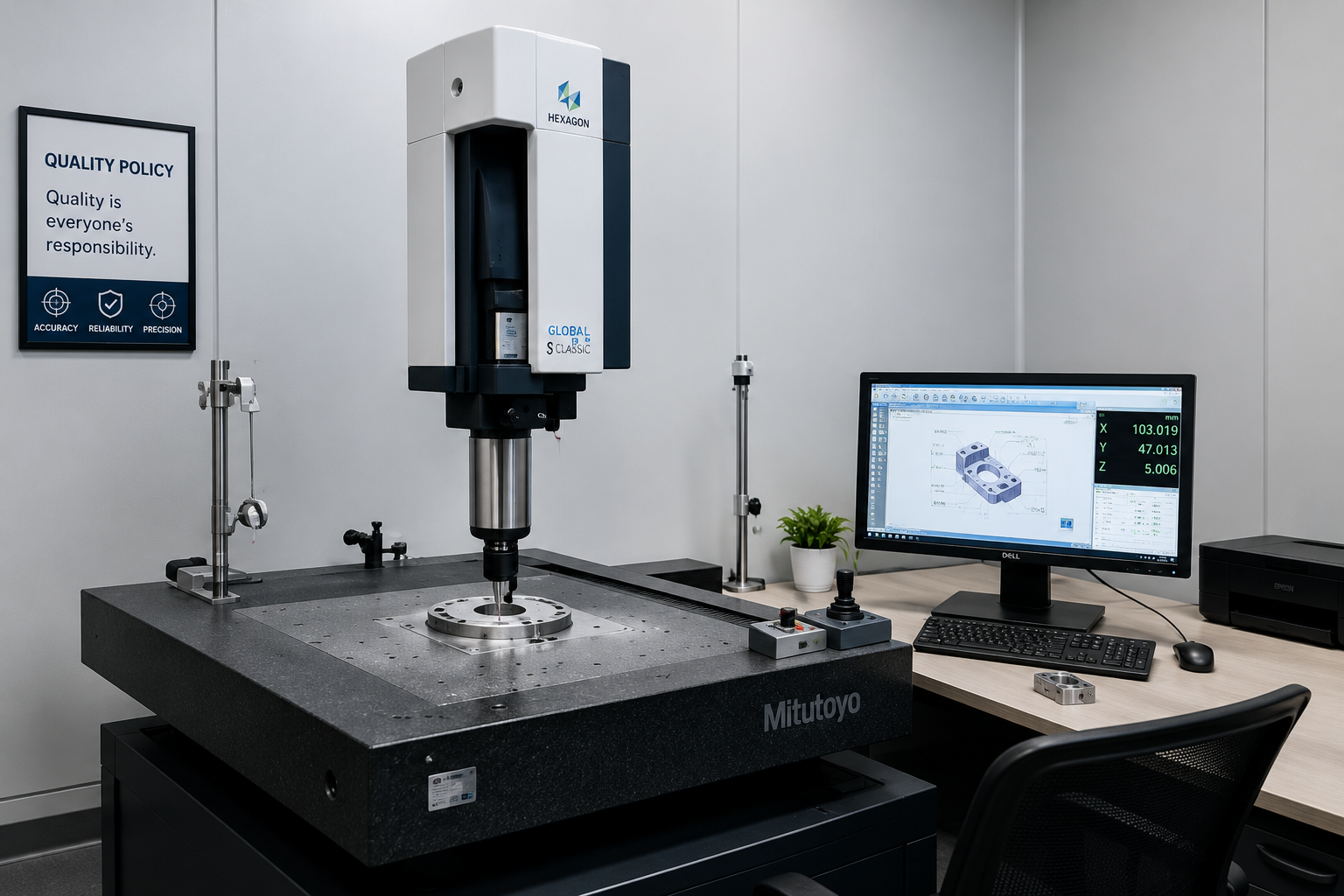

CMM Verification
Coordinate measurement for suitable complex features, positions and component geometries.
In-Process Inspection
Measurement during manufacturing supports process control and dimensional consistency.
Inspection Documentation
Measurement records and inspection documentation can support project verification and traceability.
Inspection requirements should be defined according to component function, drawing specifications and project requirements.
Engineering Guidance
Specify Tolerances Where They Matter
Applying very tight tolerances to every dimension can increase machining complexity, inspection requirements and manufacturing cost. A well-defined engineering drawing identifies the features that are critical to component function while allowing practical tolerances elsewhere.
Identify Critical Features
Clearly identify dimensions and features that directly affect component function, assembly, alignment or performance.
Define Datums
A clear datum structure helps establish how component features relate to one another during machining and inspection.
Avoid Unnecessary Tight Tolerances
Apply tighter requirements where function demands them rather than across dimensions that do not require the same level of control.
Provide Complete Drawings
Include dimensions, tolerances, material, surface-finish requirements, datums and applicable GD&T information where required.
Precision CNC Manufacturing
Have a Component With Critical Tolerance Requirements?
Send us your engineering drawing, material, quantity, dimensional tolerances and inspection requirements. Our team can review the component requirements before manufacturing.
- Engineering Drawing Review
- Tolerance & Manufacturability Review
- Prototype & Production Support
